What’s Inside? A Beginner’s Guide to Electrical Panels, Breakers, and Circuits

October 14, 2025 / 6 mins read

What's Inside A Practical Guide to Electrical Panels, Breakers, and Circuits image

Modern homes depend on an electrical system that operates almost entirely out of sight. Behind drywall and beneath floors, a structured network carries power from the utility line to every switch, outlet, and appliance. That power does not move randomly. It is divided, regulated, and continuously monitored to ensure it remains both usable and safe.

Three core elements make this possible: circuit breakers, the electrical panel, and the circuits themselves. Together, they form a structured system that manages electrical flow, prevents overheating, and reduces fire risk. Understanding how these components work together provides insight into the engineering principles that power everyday life.

Understanding Circuit Breakers

Circuit breakers serve as the primary safety mechanism in a residential electrical system. Their job is to monitor electrical current and interrupt it when conditions exceed safe limits.

Excess current can develop when too many devices operate on the same circuit, when an appliance malfunctions, or when wiring faults create unintended pathways for electricity. As the current increases, wires generate heat. If that heat rises beyond safe thresholds, insulation can deteriorate and fire risk increases.

Inside each breaker, a sensing mechanism tracks the amount of current flowing through the circuit. When that current surpasses the breaker’s rating, a mechanical switch activates and snaps the circuit open. This action immediately halts electrical flow.

Unlike older protective devices, breakers do not require replacement after they trip. Once the underlying issue is resolved, the breaker can be reset. This design allows for repeated protection while maintaining system reliability.

What Is an Electrical Panel, and How Does it Work?

The electrical panel acts as the central distribution point for a home’s power supply. Electricity enters the home through the service line and flows directly into the panel. From there, it is divided into individual branch circuits, each responsible for supplying power to a defined area or appliance group. This distribution structure provides both organization and protection. If a problem arises in one circuit, only the corresponding breaker trips. The rest of the home continues operating normally.

Inside the panel, breakers connect to bus bars, metal strips that distribute incoming power evenly across circuits. The panel’s main breaker controls overall electrical flow into the home, while individual breakers regulate specific circuits.

The panel’s amperage rating, often 100, 150, or 200 amps in residential settings, determines how much total electrical demand the home can safely support at one time. As households add electric vehicle chargers, larger HVAC systems, and advanced kitchen appliances, panel capacity becomes increasingly important. When demand outpaces design limits, upgrading the panel may be necessary to maintain safety and performance.

Parts of a Circuit

At its most fundamental level, every electrical circuit contains a few basic components that allow electricity to move in a controlled loop. The process begins with a power source. In residential systems, the utility company supplies electrical energy, delivering it through service lines into the home’s electrical panel. From there, conductors, typically copper or aluminum wires, carry the current through the circuit. These wires connect to a load, which refers to any device that consumes electricity. Light fixtures, appliances, charging devices, and outlets all function as loads because they convert electrical energy into light, heat, motion, or stored power.

Most circuits also include a switch or control mechanism that allows users to intentionally open or close the path. Flipping a light switch, for example, either completes the loop and permits current to flow or interrupts it to stop the flow. And overcurrent protection, provided by a circuit breaker or fuse, guards the system by interrupting electricity if current rises beyond safe levels.

For electricity to perform useful work, it must travel in a continuous loop from the source through the conductors and load and back again. Any break, fault, or unintended path alters how the circuit behaves and may trigger protective devices.

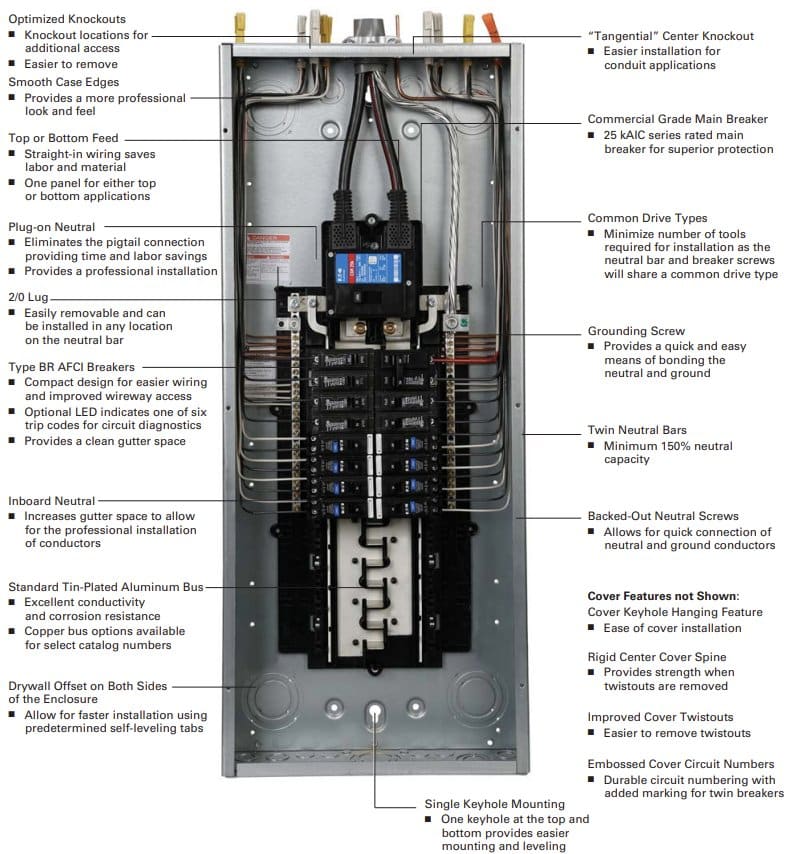

3.2 What's Inside A Practical Guide to Electrical Panels, Breakers, and Circuits image

Types of Circuits

Residential electrical systems are engineered to use different circuit configurations depending on their purpose and design. The two primary structural arrangements are series and parallel circuits.

In a series circuit, components connect end to end along a single pathway. Because only one path exists for current to travel through, any interruption, such as a failed component or broken connection, stops the entire circuit from functioning. For this reason, series configurations are rarely used in modern household wiring.

Parallel circuits, in contrast, provide multiple pathways for electrical flow. Most residential wiring uses this configuration because each load operates independently. If one light fixture stops working, others on the same circuit continue to function.

Circuits are also categorized by purpose. Dedicated circuits serve high-demand appliances such as ovens, air conditioners, or electric dryers, providing sufficient capacity for continuous operation. And general-purpose circuits distribute power to lighting and standard outlets throughout living spaces. Electrical engineers combine both configurations to create home electrical systems that balance flexibility, efficiency, and safety.

Closed, Open, and Short Circuits

Electrical circuits have three clearly defined states: closed, open, and short. A closed circuit forms a complete loop that allows electricity to flow normally. An open circuit occurs when the path is interrupted, stopping the current entirely. And a short circuit is a much more dangerous condition in which electricity bypasses its intended route and travels along a path with less resistance. A short circuit produces a sudden surge in current, which should be halted by a breaker or fuse. This automatic reaction prevents wires from overheating and reduces the risk of fire.
